Pandoras unboxed – what to look for in your arcade console

What is an official Pandoras box arcade gaming console?

No, we’re not talking jewellery. Pandora’s Box is a home arcade and console games board pre-loaded with built-in retro games.

These gameboards are found in a whole range of different arcade machines from table top, upright, little portable dual screen machines and fight sticks that resemble the deck from an arcade machine and plug into your TV.

As they are referred to and branded under various names, figuring out which gameboard you are being sold gets tricky. This guide will at minimum help you identify the gameboard you are looking at or purchased and figure out where it sits in the Pandora jungle hierarchy or power and features.

A common question is, how many games come included in a Pandora’s Box? They come with a crazy amount of variations including 99, 600, 620, 1399, and 1660 with some having over 10,000 games. The better units will include and play both arcade and console games quite well referred to as 2D and 3D. Consoles can include N64, GameBoy, Playstation, Dreamcast, and many others.

They are popular due to their ease of use and no tech or tinkering experience needed, simply plug in, select a game, and play – when you’re done turn it off and store away. Minimal space and minimal effort with a ton of Nostalgia.

With so many models out there along with platforms and sellers including Alibaba, AliExpress, eBay and a ton more, it really is buyer beware as these little arcade machines may all look the same but differ dramatically in finish quality and internal components. If you’re looking for some quick answers here they are, otherwise if you’d like to read up in more detail, you can scroll down further.

Here are the top questions being asked about the Pandora’s arcade box…

Is a Pandora’s Box arcade worth it or any good?

Pandora box boards and versions vary in game titles and performance. They are low maintenance and usually well-priced for what they are. So finding the real deal will bring a lot of enjoyment and nostalgia into your home. Before making a purchase ask for the specs or to see a video preview of your specific model, you can then decide if it has the games and performance you’re looking for. If you’re after older arcade titles like Galaga, PacMan, and Moon Patrol then an entry-level board should suffice. If you want to play those and more demanding games like Ridge Racer, Mario Kart then you’ll need to consider a more advanced Pandora model.

Who makes the original/ real Pandora’s box?

3A Games released Pandora box versions 3 & 4 in 2014 which was a very popular upgrade that turned old single game arcade cabinet machines into multi-gaming consoles.

What is the official website of the Pandora Box arcade?

While 3A Games has an AliExpress store, they are a small part of the equation. The manufacturing and retail space for Pandora boxes arcade boards is flooded, to say the least. With so many variants, manufacturers, and sellers many don’t even know what version or gameboard they are selling and there is no official Pandora’s Box website you can refer to. Hopefully, sites and articles like this will help buyers be more aware of what they are buying irrespective of where or from whom. In short, beware of marketing claims and seek out details and specifics of what’s being sold.

What is a clone and should I avoid them?

Clones were initially inferior copies of the 3A product, however, it’s been over 7 years now, and just like Hyundai started as an inferior product and has grown its quality and market share, we now have Pandora box clones that lead the market in performance. That said with pricing ranging between $150-$400 there is still much confusion as to what you are buying and you can easily find yourself disappointed with an inferior clone or a 3A games genuine Pandora’s box.

What games does a Pandora box 11, 12, 18, 28 etc have?

The game count ranges from 60 in 1 to 10,888. A mid-tier performance Pandora’s box will play a good amount of Arcade classics well including;

• 1942
• Bomb Jack
• Double Dragon
• Galaga
• Moon Patrol
• Mortal Kombat
• PacMan
• Rampage
• Space Invaders
• Street Fighter

However, if you want a smooth experience and the ability to play more demanding consoles and games like Dreamcast, N64, and Playstation then a 3A Games Pandora’s box doesn’t have what it takes.

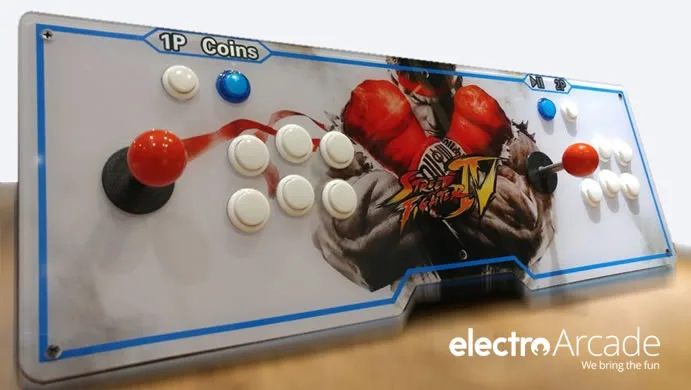

Can I use a Pandora box fight stick as a game controller?

Yes, most Pandora box units have a USB port dedicated to connecting to your PC or PS3. Simply connect the included USB cable and power on both units. Once identified you will be able to use your Pandora box as a dedicated arcade fight stick on your PS3 or PC.

What Pandora’s box will play arcade and console games smoothly?

The EX2 Pandora’s box and the Pandoras box 3D Plus are substantially ahead in performance and gameplay compared to any other Pandora box be it a clone or a 3A games product. You can expect to play more demanding games like;

• Ridge Racer
• Mario Kart 64
• NBA JAM

What is the latest version of Pandora’s box?

There are a lot of new Pandora Boxes, the challenge is that many run on older slower gameboards so while they are marketed as newer or have a higher model number like a Pandora Box 28,30 they are inferior to the models that came before.

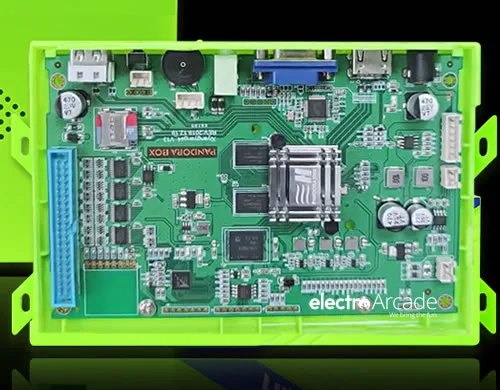

The original manufacturer 3A Games has released their latest EX board which hardware-wise is more powerful BUT as a complete package, it underdelivers and feels like an incomplete product. While the original version, it’s far from the best.

So the question that should be asked is…

What is the best-performing Pandora’s box?

The fastest Pandora boxes are clones made by PSA and Austar. They are the Saga EX2,3 and the 3D+. Although very similar hardware-wise, we believe the Saga boards run faster and smoother. That said there is always a twist with the new Alpha+ board that’s not as fast but has greater compatibility supports light guns, and trackball, and is unlocked meaning you can tinker and tweak to your heart’s content.

From game count, to model number to year of release and fit-out quality… How do you choose the best or even the right Pandora’s Box console?

Does a bigger number mean a better console?

The higher version number must mean it’s newer or better? a PB28 must be better than a PB18 and 10,000 games must be better than 4,500. The more the better right?

Are you truly buying the best and latest 2021 or 2022 model? or just the best marketing pitch?

In short model numbers mean very little and when was the last time you played 1,300 games and left upset you didn’t have 4,500 or even 8,000?

In short model numbers mean very little and when was the last time you played 1,300 games and left upset you didn’t have 4,500, 8,000, or even 10,000?

no one mentions that not all games will play well on every machine, and 15 versions of each game along with a heap of non-English versions isn’t everyone’s cup of tea.

Searching the web for information

If you’ve looked on the web and eBay there is a crazy amount of long ads with no mention of hardware specs or motherboard model and surprisingly a heap with no image of what the actual interface looks like..

We’ve reached out to endless sellers on different platforms and purchased from many as well. While there are those who know their product, the consensus is that many don’t.

So what are you actually buying? A pretty box?

YouTube reviews with caution

You’ll find an abundance of reviews on YouTube which can be very helpful. Those that show the gameboard are great as you can’t make an accurate decision based on the case alone. Looking under the bonnet is critical in understanding how a particular Pandora’s Box console performs.

Here are two examples showing how easy it is to be misleading and end up buying a slower-performing games console.

Game on Friends review

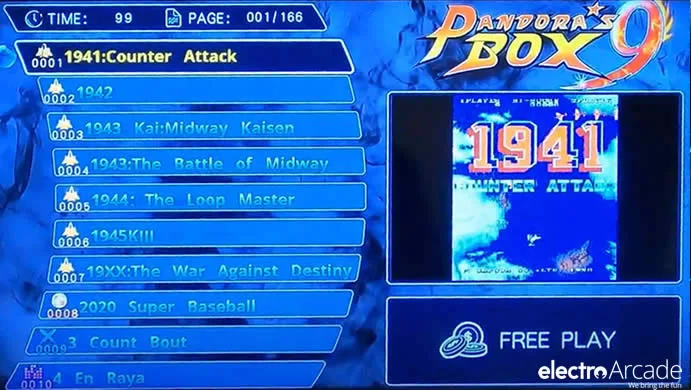

Pandora’s Box 9 is an entry-level arcade gaming console sold by Jaycar and many other Australian retailers. Visually from its ‘game on friends’ writing, orange branding, case, and everything else, it’s indistinguishable from its much faster sibling mostly sold overseas. A Google or YouTube search includes reviews of the faster 8-core CPU gameboard. A popular and decent review is from ETA Prime. The challenge here is that Jaycar nor any resellers actually share pictures of the gameboard or publish/know the specs of the board. A case of buyer beware.

12s, 18s or now even the 18s Pro, 28s and 30

The 12s being a PSA-H3-H001 (A7 Quad-core) has also been sold under many other numbers including Pandoras Box 18s and 28s.

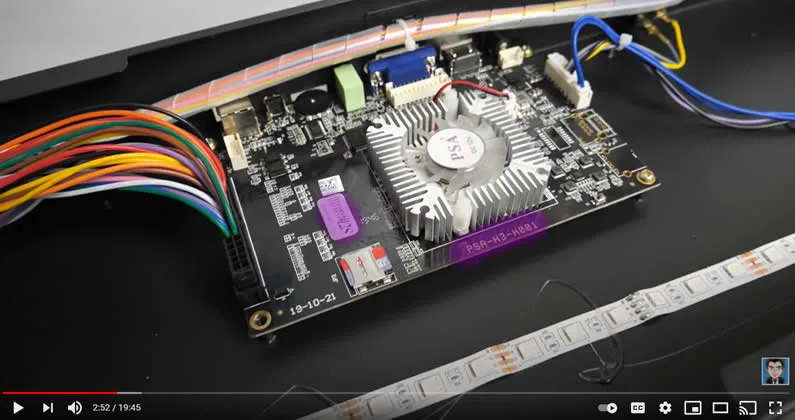

Two YouTube videos regarding the Pandora Box 12s from Chigz Tech Reviews which collectively received over 286,338 views show a 12s with 3,333 games.

Both units were rated “the best-performing Pandora box he had tested to date with no noticeable lag”. The first review was a genuine 12S PSA-H3-H001 (A7 Quad-core) which is a mid-tier performer that will show signs of lag on games like Mario Kart 64.

However, the second review was a substantially faster PSA-S812-S001 (A9 12-core) which is actually an 18s/Saga. There is simply no comparing the two. Due to runout stock, this was branded and unknowingly sold by many as 12s.
So if you were to follow this review and purchase a 12s you would be underwhelmed and end up with a much slower H3 console.

Thankfully Chigz did open the case and show the boards, so IF you were checking for the board ID you would spot this, even though he did state he believed the s812 was a quad-core, as opposed to an actual 12-core :-(.

While Chigz puts together a lot of nice reviews, this emphasises the amount of confusion out there by sellers, promoters and general consumers. With a crazy amount of manufacturers, assembly partners, wholesalers and re-sellers,  you can see why it’s crucial to check the specs, as model numbers and stickers can mean very little.

^^ PSA-H3-H001 (V1)

Less is more and quality over quantity applies here in spades.

Always look at and validate the actual motherboard ID, CPU and features. The last thing on your list should be game count – with the right machine you can add the specific games you want. This article will provide some history on Pandora’s Boxes and help you make sure you are actually getting what you think you’re getting.

Happy reading 😉 and you can reach out to us here or here on FB

A quick look at the history of these Pandora’s Boxes

Pandora’s Box was initially released by 3A Games who started by creating JAMMA-compatible arcade boards that could easily upgrade old arcade machines. This easy fix or upgrade increased older arcade machines from 1 to 60+ games machine.

If you’re looking for pointers on what makes a good arcade machine check out our How to choose an Arcade Machine Guide

Pandora Box models included 2,3,4,4S,4S+,5 and 6.

The ability to support the old 15hz CRT CGA tube screens was a big selling point, and in 2015/16 the official 3A game Pandora’s box 4 with JAMMA harness did just that. Needless to say, being the first it received a lot of attention and praise.
In 2017 3A Games released the PB5, but for some strange reason dropped 15hz support. With a ton of manufacturers wanting a piece of the pie, many so-called PB5 and 5s versions were sold that supported CRT. It turns out that the PB5 and PB5s units that supported CRT were third-party clones that copied the older PB4 spec and chipset.

As most of the older, especially arcade games were made pre-widescreen, when playing these on newer screens the biggest challenge is maintaining correct display proportions (Aspect Ratio).  With larger and widescreen monitors/ TV’s the challenge that standard Pandora boxes face is picture stretching and distortion of ratio.

By now, the numbers race and customer confusion are well underway.

The official PB4 used an A13 single core, while the PB5 had the A7 quad core. The A7 processor can still be found in the Pandora’s Box 11s, X, X plus and PB9.

Versions 5 & 6 saw arcade and family versions released. The arcade version kept the dedicated JAMMA 28-pin connection, while the family version used a different 48-pin black socket connection. Thankfully there’s a family 48 to JAMMA 28 pin converter allowing both units to be interchanged.

PBX, PBX plus, and PB9 appear to be PB5 clones – A7 chipset.

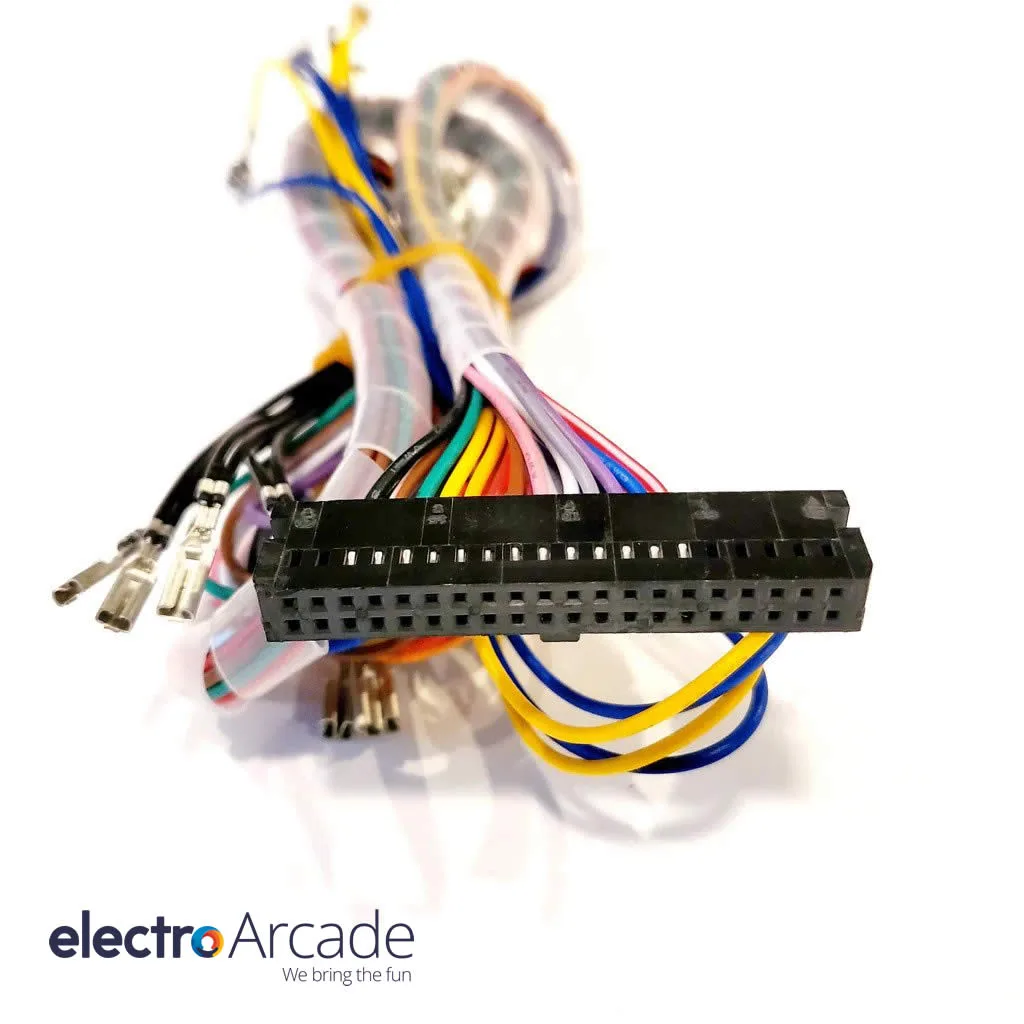

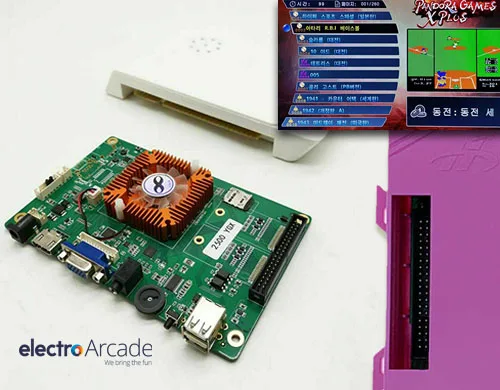

The JAMMA version of Pandora’s Box 6 re-introduced support for CRT screens through JAMMA for CGA at 15hz.

This made it ideal for arcade machines, even though some more demanding arcade titles still struggled.
The family version used a different connection with HDMI and VGA output that supported LCD flat screens. They were meant to support old-school CGA but as mentioned this was hit-and-miss dependent on the model and if it was a clone.

The arcade version had a pink case while the family used a see-through green. The 5 came with 960 games vs. 1300 games on the 6.

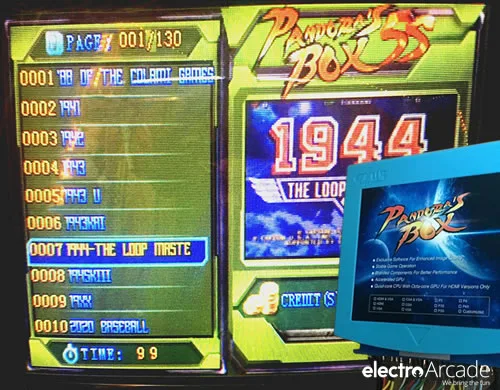

Below is a PB5s 1299 in 1 with a blue case with CRT support – so very likely a cloned/ rebranded PB4 or PB4s.

During the time of the Pandora 5 & 6 versions, the circulation of clones was becoming evident as was the inclusion of original 3A or clones boxes inside portable arcade stick setups. These could be connected to an existing TV or display screen, turning it into an instant arcade machine. They could also be used as a joystick with your PC or games console.

The numbers race

3A Games skipped from version 6 to DX which comes with 3000 games, of which 38 are 3D. It includes a pause, save, and high score function. It also has a search feature, that lists games by type, recently played, or by 3D which are newer generation versions of the game be it PSP or PSX, as opposed to the 2D old-school arcade version.

So by now, you’ve probably got a hunch as to why 3A games named their newer console DX instead of 7, 9, 9D, 9H, X, X+ 11, 11s, 12, 12s, 18s, 19, 28, and so on…

Yes, Clones. DX instead of another number helps 3A cut through the noise and differentiate, but is that enough? Clones have evolved and come a long way, and while the clone war is rampant with a lot of variations, most will play the old classic retro games to a comparable standard of the PB6 or DX – But is that enough? If you’re chasing a more complete gaming experience, then the differences really start to stand out between the more advanced elite clones and the rest of the pack.

People often ask if this is a genuine Pandora’s Box? Unlike Nike or Apple, in today’s market 3A is clearly not the only manufacturer of these boxes. Many now classify some of these elite clones as a better option compared to the original and current Pandora’s Box.

The problem is, the clone’s race is flooded with variations and subsequent model numbers that makes comparing incredibly difficult.

None of these models are manufactured by 3A Games -> 7, 9, 9D, 9H, X, X+ 11, 11s, 12, 12s, 18s, 19, 28, Saga. While these can be grouped and classified by the board and processor they use, a large amount of online listings for these gaming console sticks don’t include this information and may refer to them as Pandoras box key 7, Pandora’s Box Treasure, or Treasure 3D.

It can get confusing real fast and you could easily think your buying the latest and greatest and end up with something else all together. The best way to try avoid this is by looking at key features and if possible compare what the main boards look like for clues. If the seller can’t or won’t provide this key information – walk away.

I want the games console with the most games I can get

Let’s keep in mind that these are all emulation consoles, so there is a program that is loaded and in turn, it runs and interprets the chosen game. For example, MAME is the program used to run arcade classics. The most common versions are MAME .139 and .78. Most Pandora Boxes will emulate/ play arcade classics well as the processing demand is relatively low. So if that’s all you want then an 11s or anything with an A7 chip should tie you over. Remember with emulation – nothing is ever perfect.

As you start exploring other emulators that demand more powerful hardware, depending on your console you may start to notice sound clipping, page tearing, freezing, crashing, or even game exit. The majority of Pandora’s Box consoles don’t provide the ability to adjust game settings like frame skip which can reduce this impact and make a game more playable, making Pandora’s Box selection more critical.

So back to game count.. Pandora’s Box consoles include games from different consoles including Arcade, Game Boy Series, SNES, PC-Engine, Megadrive, Dreamcast, N64, and PSP.
Each Console and subsequently each game has different requirements.

Anyone who’s ever owned an emulation console will tell you that not all games work, and for those that do they don’t all work well. Let’s skip forward a bit here… If you want to increase the probability of desired games playing well on your games console, then you need to seek out the best hardware – and thus lies the challenge.

The moral of this story is more is not better. If anything once you have your console, you will likely want to delete games that you don’t like or don’t run as well.

So what is screen tearing or Lag, whichever you prefer to call it is when the game being emulated struggles due to limited hardware or software resources and this impacts the gameplay and image motion/ smoothness.

Where are we today?

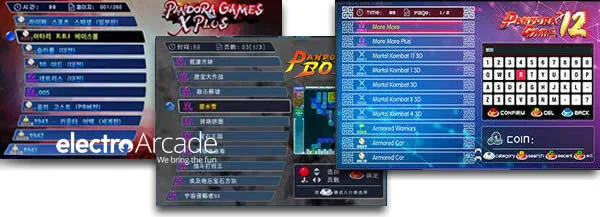

Using the below you should be able to categorise or come close to understanding where in this hierarchy Pandora’s Box arcade console stands.

No matter what number a Pandora’s Box is advertised, as mentioned always look at and confirm the specs. As a base check, if the listing doesn’t state it has game list filtering (All, Category, Recent, Search) or Save and Load game progress then its either 11s spec or older.

Pandora X and X plus along with PB 12 images below from eBay listings are PB 11s spec.

Be it local or international, beware of incomplete listings and images showing features not listed. It might also be a good idea to buy from those who know about the products they are selling… Do your research as having to return an item can be costly and very time-consuming.

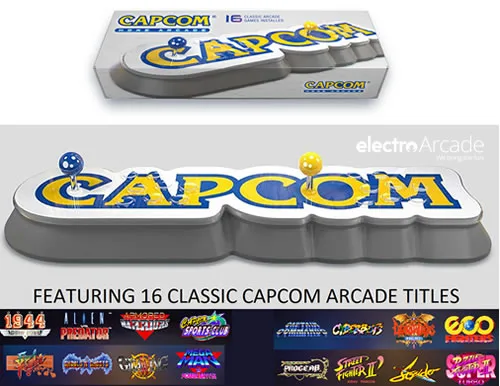

Capcom Home Arcade stick console

This little beauty has been popping up in mainstream retail outlets ranging from Target to Kogan and everything in between.

While it has premium controls, given the game count and price we’ve placed this as our entry-level unit.

Priced between AUD$199 to $299, it includes Sanwa JLF-TP-8YT joysticks and Sanwa OBSF buttons along with the below 16 classic titles;

• 1944: The Loop Master
• Alien vs. Predator
• Armored Warriors
• Capcom Sports Club
• Captain Commando
• Cyberbots: Full Metal Madness
• Darkstalkers: The Night Warriors
• Eco Fighters
• Final Fight
• Ghouls’n Ghosts
• Giga Wing
• Mega Man: The Power Battle
• Progear
• Street Fighter™ II: Hyper Fighting
• Super Puzzle Fighter II Turbo

The video output is 1080P and the emulation software used is RetroArch on a Linux base with 4GB NAND. This blast from the past makes a serious visual statement and comes in at 74cm x 22cm x 11cm.

Pandora 11s

The 11s also sold as Pandora’s Box 9, is an entry-level console that comes in two iterations a Quad-core Cortex-A7 1.2GHz CPU; GPU Mali 400MP2 graphics processor with 1600, 2600, 3399 games or a H2 A7 quad-core with 2989, 3003, 3188, 4710 games. Micro SD Card is either 16GB or 32GB.

It plays all the classics and has a small amount of 3D titles which is not its strong point. It has no save state, so it can’t store your high score, save game progress, or load your previous position. The console does include search, pause, and exit features. The 11s also known as the plus or key 7 treasure comes in a varied game count including 1299, 2167, 2706, 3000, 3009, and 3399. The Pandora’s Box 11s stores its games on either a 16GB/32GB micro SD card. if you’re looking to occasionally play old-school classics like Galaga, Moon Patrol, Space Invaders, Pac-Man, and so on then this unit will do the job. If you can pick one up dirt cheap its a good start.

A common design we’ve seen is the ‘Game on Friends’ single deck sold by Jaycar Electronics, Betta Home Living, and other resellers. This comes with 1600 games and retails for around AUD$249 :-(.

Irrespective of the name, if your interface looks similar to the below you very likely have a Quad-core A7 Mali 400MP2.

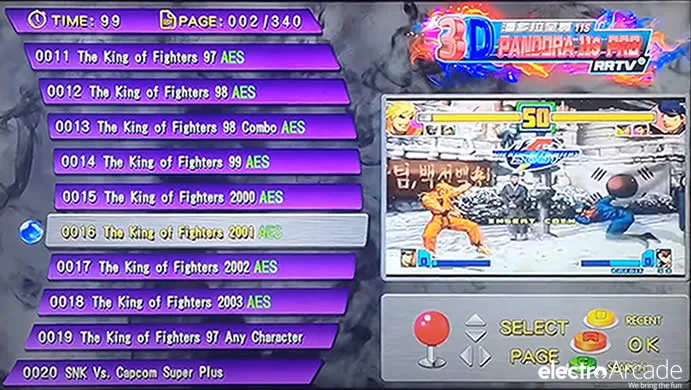

PB 11s Interface:

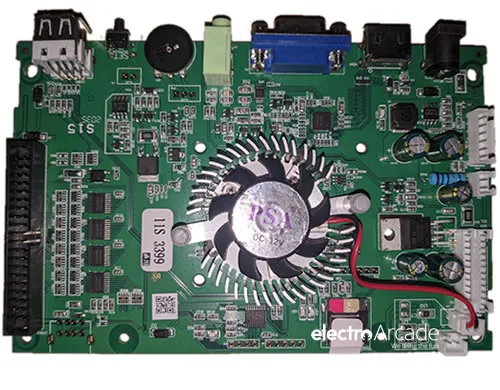

PB 11s Motherboard:

Pandora 9

The Pandora 9 made by Austar runs a blue board just like its big brother but without the oomph!  Made in China like the rest of them, Austar has nothing to do with the Australian telco with the same name. This PB9 is basically an 11s with fewer games. Its the same same spec being a Quad-core A7 Mali 400MP2 with no save or search functions.

A common design we’ve seen is the ‘Game on Friends’ single deck sold by Jaycar Electronics, Betta Home Living, Kogan, Catch, and other resellers. This comes with 1660 games and retails from AUD$249 to $305 :-(.

Interface:

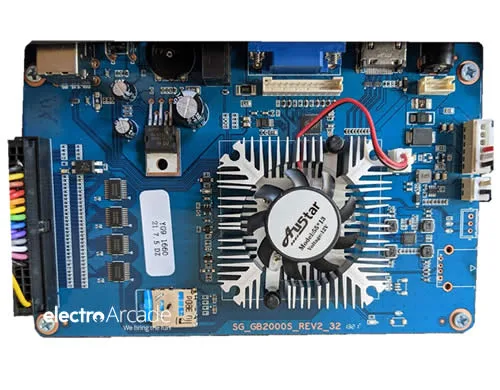

PB 9 Motherboard:

Motherboard identifier: SG.GB2000S.REV2_32

Pandora Alpha Fight

The Pandora Alpha Fight released after the 11,12, and 9 boards has a unique interface and different looking black board with gold lines. Sadly the spec isn’t any better running an ARM cortex A7 quad-core 1.3Ghz (4-core CPU, 2-core GPU) with a Mali400MP2and 256MB RAM. HDMI & VGA output is 1280 x 720P. That’s .1Ghz faster than the entry boards before it, the board looks fancy though ;-).

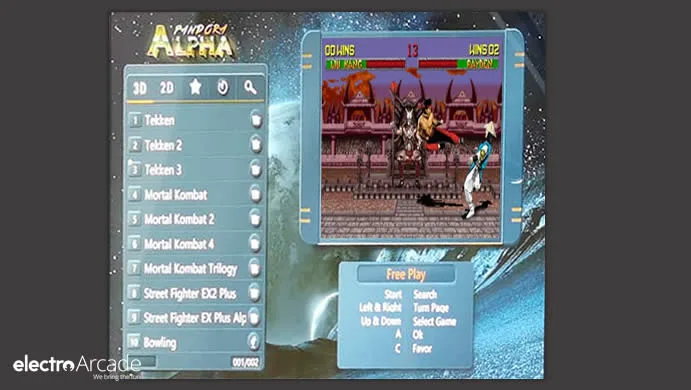

Interface:

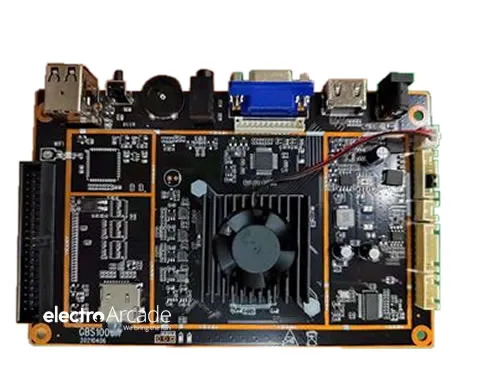

PB Alpha Fight Motherboard:

Pandora Alpha 3D-Max:

Released in 2023, the Pandora Alpha 3D-Max uses an 8-core processor with a Cortex-A17 @ 1.8GHz CPU and Mali-T764 GPU @ 600MHz. RAM is 1GB and output via HDMI & VGA is 1280 x 720P.

While the Retro Shooter and Saga EX2/3 boards have more grunt, the Alpha runs very efficiently getting the job done well. The upside with the Alpha is;

• Not locked down making updates easier
• Compatible with more accessories
• More reliable Save and Load game progress
• AimTrak light gun support

By not being locked down you can access config files per console and game and for those who love tinkering remap, adjust game settings, and so on. Greater accessories compatibility means more options for gamepads and we now have a trackball option. Last but not least save and load game progress seems to work on most games and consoles – which we found to be hit-and-miss with Saga boards depending on game or console. Not being locked down along with greater compatibility was a big selling point for us which is why The PB Alpha is our current gameboard of choice and used in our Pandora Box gaming decks.

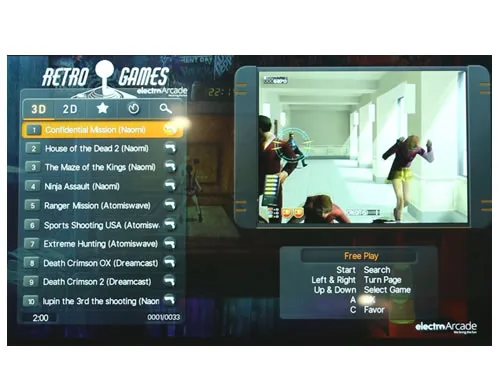

Alpha 3D-Max Interface:

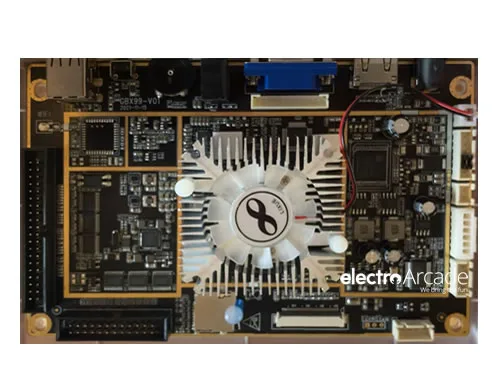

PB Alpha 3D-Max Motherboard:

Pandora 12

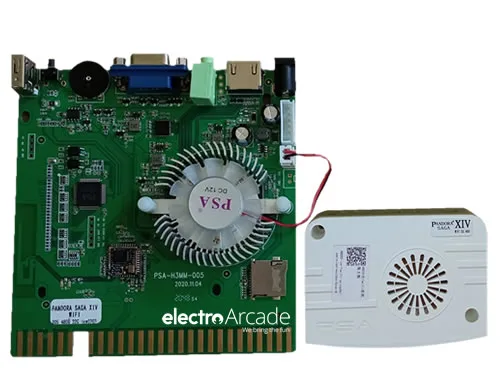

The 12 is also branded as the 12s, X Plus, Saga 13 XIII, Saga 14 XIV, and in true Pandora tradition now we also have the 28s Pro RRTV. This is the next step up with a slightly higher spec Quad-core H3 1.5GHz; GPU Mali 450MP2 with a 32GB card housing anything from 3188, 3333, 3800, 4800 games of which around 70 are 3D and has Wi-Fi as an option. Released in 2019 there was also a short board JAMMA version which didn’t do too well.

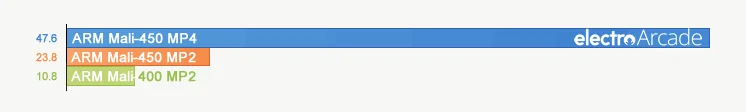

To give you a visual feel of graphics ability, here is the Mali graphics chip performance comparison in GFLOPS. You can see in Orange, the 12s graphics processing is double the speed of the older 11s. The 18s and EX boards shown in blue double the graphics ability of the 12s.

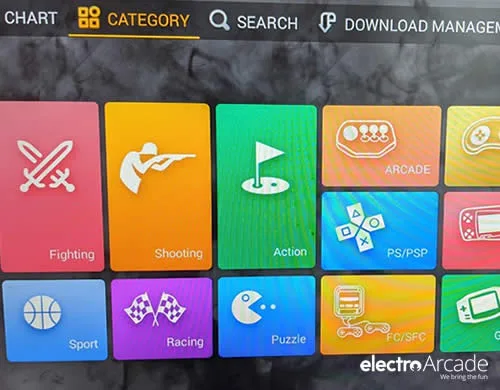

The 12s Skin and user interface look newer with access to the game store where you can download more titles. In addition, it introduces game list filtering and save state which allows you to store high scores, save game progress, and load previously saved games.

Due to the newer skin and interface many confuse this with the faster A9 machines.

The 12 boards play the basics well and while capable of playing some of the more demanding games, on some titles like Mario Kart you may notice sound chopping and frame skipping. While there’s still lots of fun to be had, it depends on each individual’s requirements. As seen in the below interface the 12 is also pushed as the 28S Pro. To identify what you are buying, please always refer to the Pandora box motherboard.

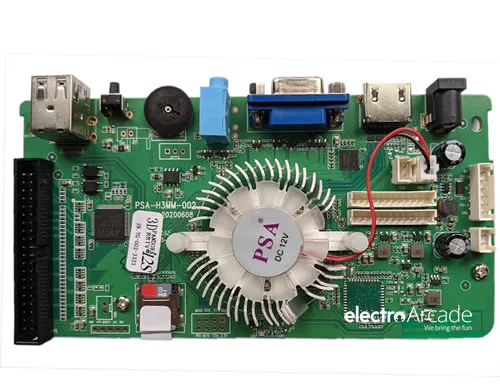

Motherboard identifier: PSA-H3MM-002

Interface:

Motherboard:

Pandora 9D

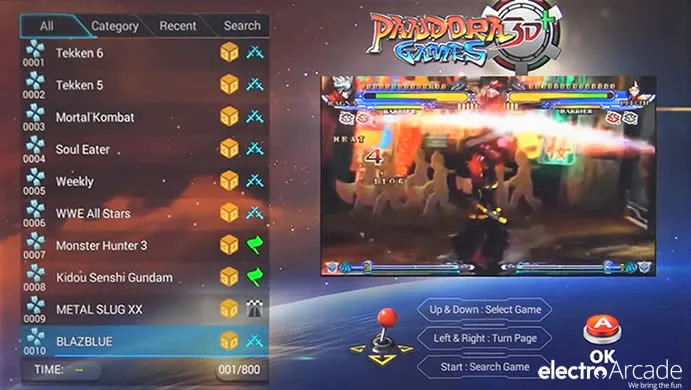

The 9D also known as Pandora Games 3D is very similar to the 18s/ Saga and shares the same spec ARM Cortex A9 Quad-core processor and 2GB RAM.

While the 9D GME GB3000 is distinguishable by its blue motherboard, the key differences between it and the 18s are;

1. Video output is lower at 1280 x 720P

2. While the games are still stored on the micro SD card, with onboard NAND, the operating system is stored on the motherboard itself

Having the operating system on the motherboard means it can’t be updated and should anything go wrong the board is toast.

That said you’re unlikely to notice the gameplay difference on the 9D compared to the 18s/ Saga.

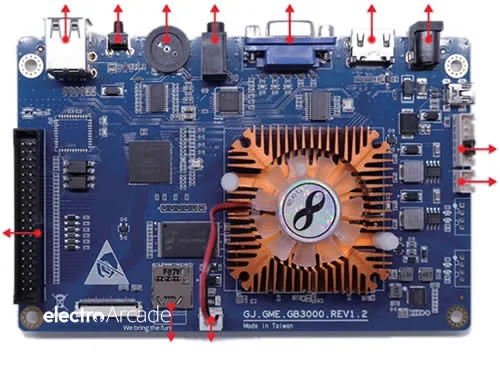

Motherboard identifier: GJ.GME.GB3000.REV1.2

Interface:

Motherboard:

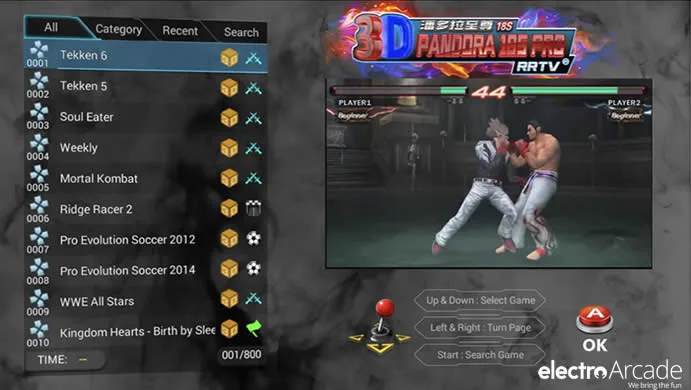

Pandora 18s, 18s Pro

The marketing hype continues as the 18s and 18s Pro are the same machine. with no difference. With a 12-core ARM cortex A9, 4-core CPU+8 core GPU 2.0GHz; and Mali 450MP8, the 18s 3D model comes loaded with all the features and grunt to handle the included 4500 old-school and newer 160 3D games. This unit is smoother and faster with a video output of 1920x1080P that will ensure a maximum arcade experience. While you may be happy with an 11s, 12s, or older board – the 18s uses a newer generation chipset and just does things smoother and with less effort. In short enabling you to play more demanding games.

As this machine supports larger SD cards like the Saga EX2, in true Pandora box tradition, it comes with more games including 8,000 and 10,000. The 8,000 includes an extra 40 3D titles meaning better graphics versions from either PSP or PS1.

After much testing, the 18s Saga was our preferred board for some time.

While the 18s will play more demanding games like Mortal Kombat, Tekken, Mario Kart 64, and Initial D smoothly and with ease, the last boards were cleared out and sold as the slower 12s and subsequently, the 18s was discontinued by early 2021.
The manufacturer claimed too many returns due to reliability and heat dissipation which led to brittle wires and occasional wire/fan contact.
Around February 2022 we noticed some new PSA-S812 single boards doing the rounds even though the manufacturer had discontinued its production.

If you’re looking for a faster machine with smoother gameplay across the board, the A9 chipset be it an 18s, Saga s812, EX2, or *9D GB3000 with a 12-core processor (quad-core CPU + 8-core GPU) is still a good option. With its decent price point and chipset, this setup delivers good gameplay making it an easy decision for many. The not-so-great storage is encrypted so no tweaking of settings, saving & loading game progress along with the Wi-Fi store being hit and miss and no trackball support – pretty standard for many PB boxes, but not a deal breaker for the price.

*As mentioned previously, marketing vs. actual can be very different. We’ve seen Pandora Box 9 & 9D listed with an A7 processor making it entry-level. Always confirm the board specs.

After much testing, the 18s Saga was our preferred board for some time.

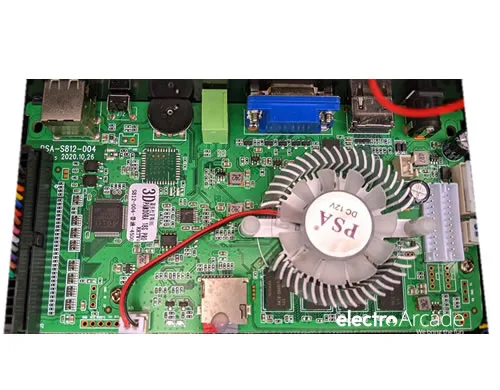

Early 2021 we started noticing the s812-004 which is a shorter board with the power and P1/P2 sockets removed. Most use the 48-PIN connector to do the same along with the rear-facing power jack.

Motherboard identifier: PSA-S812-004

Interface:

Motherboard:

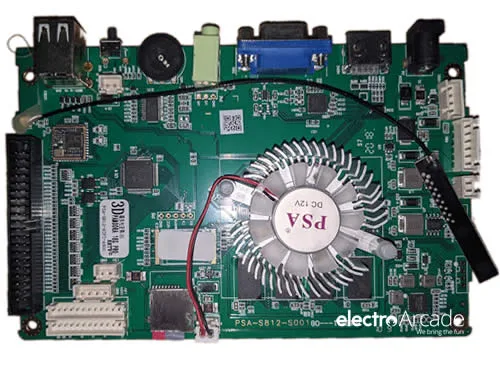

This is the now older s812-001 with the additional connectors and longer board. Same chipset and performance. The black cable with the mini board is the WiFi receiver. This test unit solidified our position – we are not fans of the WiFi model as it expires, is unreliable, and hard to find what you want. There are better alternatives that will save you time and hair.
Motherboard identifier: PSA-S812-S001

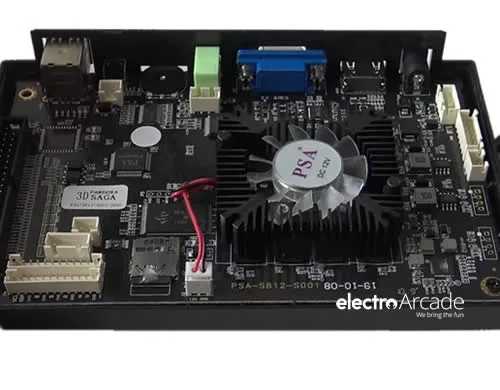

and just to spice things up here is the same 18s Saga v1 using a black PCB board with a square heat sink.

Pandora’s EX2 & EX3 6800/ 8000/ 10,000 in 1

The EX2 Pandora’s Box performance is in line with the 18s/Saga/3D as it uses the same s812 chipset.

While it is a newer 2-board setup, performance-wise it delivers the same as the existing 18s saga.

The key difference from the older 18s to the new EX2 is the removal of the fan. While we initially thought fan is best, and hearing no fan feels somewhat strange, performance was not affected. The move to passive cooling reduces noise, power usage and clearance issues. The Operating System has been moved to onboard and games left on SD Card. The noticable difference between the EX2 and EX3 is number of rear facing USB ports. As per the name EX2 has 2 USB ports and EX3 has 3. This means the EX2 can have 2 USB controllers connected, while the EX2 needs a USB hub to achieve the same. Why? Because 1 USB port is always allocated for connecting to your PC or PS3 which turns your fight stick into an Arcade Controller. The only down side we found was due to using a dual board setup this cannot be removed from its case for when fitment is tight. We also found that save/load state was not supported on all consoles/games.

WARNING: as always check the board and confirm with the seller as we have noticed the exact same 6800 in 1 and 8000 in 1 listings with single board setup which is a 12s PSA-H3MM-002. This is a slower board. Pic for reference is shown below.

The unit comes with a 64G card with 6,800 /8,000 games or a 128GB card with 8,000 and 10,000 games. More games will give you more diversity and introduce some nice titles, but as expected more games do not mean they will all work well or that you’ll like them all. The large game count does mean it will take longer to navigate and of course some more effort in finding that one title ;-). Thankfully the s812 machines all have a simple search and favourites function.

The EX2 comes with and without WiFi. While not a big fan of the game store, due to incorrect naming and reliability, it does provide an easier non-technical way to add games to your Pandoras Box. As such we stock the WiFi model which enables you to access the store.

We have found that the EX2 also comes with 4800 games on a 32GB card. Due to the smaller card, you’ll find that in order to get the impressive big game count 🙂 the included games have to also be a smaller size. So expect to miss out on the larger file size more complex or detailed PS1 games here.

The EX2 uses a split board with the same 48PIN family connector you’ll see on most Pandora’s Boxes.

In addition to what you expect on a Pandora’s Box arcade, the EX2\ EX3 has a;

• LAN port
• Digital audio out so you can use an optical audio cable to push sound to your TV, amp, or other supported devices
• EX2 – 2 rear-facing USB ports (4 in total). Unfortunately, the test unit still needed a USB hub to connect more than 1 gamepad
• EX3 – 3 rear-facing USB ports – no USB hub required to connect 2 USB-based compatible gamepad/ controllers
• Passive cooling instead of the active cooling heatsink fan seen on previous models

Gamepad compatibility on Pandora Boxes can be hit and miss, however, this newer EX2 version is meant to play nicer with more gamepads.

HDMI output is 720P and unlike the 18s/Saga, it has onboard NAN which stores the operating system instead of having it on the micro SD card.

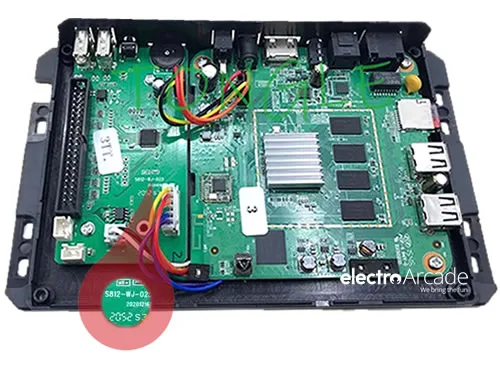

Motherboard identifier: S812-WJ-025

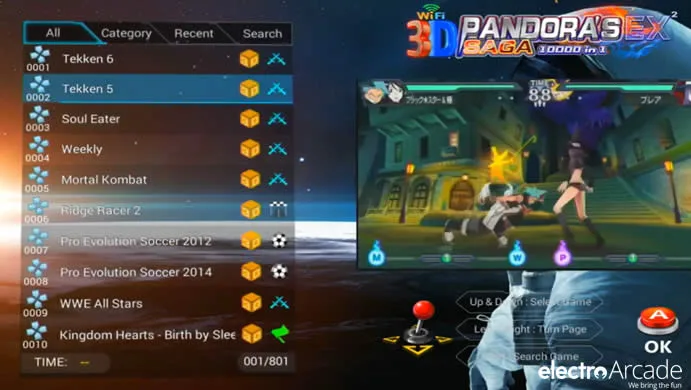

Interface:

Motherboard:

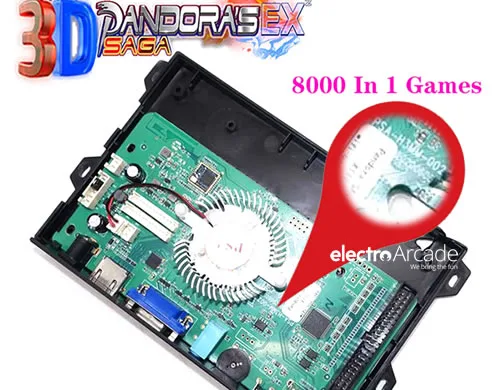

and the below is the 12s, 13 XIII imposter being sold as a Saga EX2 which it clearly is not – BE CAREFUL! What’s your preference? a fast machine with fewer games or a slow machine with too many games? Another reason to not buy is based on games. Expect the below board to struggle with many of the included titles.

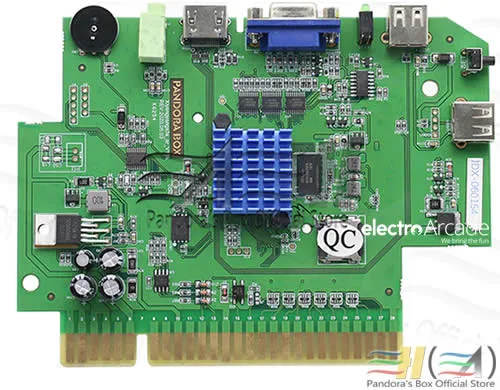

Pandora DX

The Pandora Boxes from 3A were the first and are still well-suited for old arcade machines using 15hz tube screens.
The DX is a decent unit and for what it’s worth remains the original. For those chasing the best arcade experience, sadly the DX has been losing out with many either avoiding it or upgrading away from it.

The DX power plant is a Quad-core Cortex A7 1.5GHz with Mali 450MP2 and 2GB DD3 RAM. Graphics output is via HDMI or VGA while the resolution is the same as H3 12s at 720P. It includes a save state, so you can save and load game progress along with saving your high scores.

Keeping with tradition it comes in Arcade with Jamma connection seen below or Family edition which has the 48PIN black plug you usually see on Pandora boxes.

While the spec has improved from the previous Pandora’s Box 6, the DX looks to sit somewhere around the 12s spec-wise, which puts it way below the leading pack.

For this reason, it struggles with faster games, and as mentioned sadly many upgrades away from it to the faster 18s, Saga, and 9D powered consoles.

That said if you are chasing a gameboard that supports a 15hz screen or are happy with just the old-school arcade classics, then the DX with an aftermarket software patch delivers a lot of improvements over the factory release.

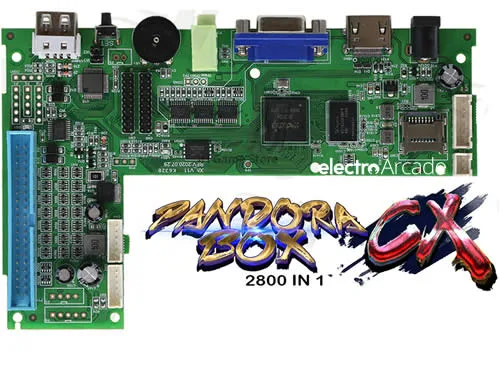

Pandora CX

The CX is a 3A Games revision of the DX and was released in late 2020. The Pandora box CX is a 2800 in 1 and runs a Quad-core Cortex A7 1.5GHz with Mali 450MP2 and 2GB DD3 RAM with 16GB micro SD storage. Graphics output is via HDMI or VGA while the resolution is the same as H3 12s/13 at 720P. It includes a save state, so you can save and load game progress along with saving your high scores. Yes, almost an exact copy and paste from the DX spec. The board is a new L-shaped approach with a few more onboard connections that most won’t use and a passive heat sink on the CPU as there’s no room for fan cooling.

Not sure why 3A Games released the CX spec-wise, sadly it looks exactly the same as the DX. Wicked Gamer mentioned it has better gamepad support as worked with an Xbox 360 controller, looks like that’s as good as it gets. Fingers crossed 3A has something better in the works.

Pandora EX

Many have been waiting for this moment when 3A finally released their response to the clones that have been leading the way for some time now… Would the Green Pandora Box EX be what we’ve been waiting for?

Well the Super Console X which uses old hardware has an Amlogic s905M/X CPU. The Green Pandora EX uses an Amlogic s905x2 and our Super Console X3 Max runs an Amlogic s905x3.

Released in late 2021, the EX has the fastest hardware so far from 3A and can push 720P and 1080P using a Mali-G31. As a complete package, it comes across as unfinished :-(.

Spec-wise 3A games EX green meanie runs a Cortex A55 at 2.0Ghz with a Mali-G31 MP2 and 8GB DDR4 RAM. On paper, it sounds good, but we’re not playing on paper.

While the screen tearing that previous versions experienced is gone, the software including emulators, interface, and configuration along with the 3:9 screen ratio of the EX needs much work.

With 3rd party patches, the slower DX still comes in ahead of its newer green sibling.

Hopefully, future revisions will see improvements however the Pandora Saga boards remain miles ahead.

Pandora Box 10th Anniversary – Retro Shooter

3A followed up their EX with its first lightgun-compatible Pandoras Box. However, as soon as the lightguns became available 3A gave all reseller rights to Retro Shooter a Canadian-based partner. The 10th Anniversary board can still be purchased on its own, and while it performs ok, it is locked down meaning no access to emulation settings.

Spec-wise expect quad-core Cortex A55 2.2GHz CPU with dual-core Mali-G52 GPU and 2GB DDR4 RAM. The chip in these is an RK3566 also found in some of the Anbernic handheld consoles.

While the PB 10th Anniversary Retro Shooter boasts a faster CPU than the Alpha, Saga, and Austar 3D boards, its higher price tag doesn’t necessarily guarantee a better gaming experience.

The lightgun experience with the Retro Shooter has had positive reviews. However, pricing and shipping costs will vary depending on your location, along with any applicable taxes or customs clearance requirements.

Retro Shooter Interface:

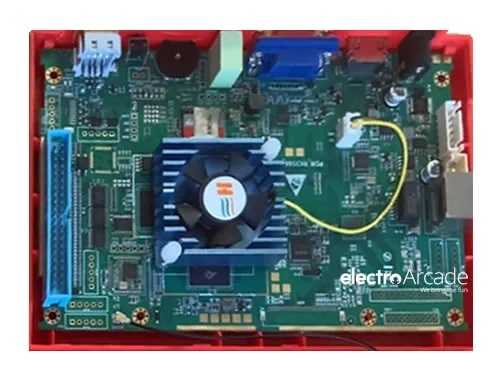

Retro Shooter Motherboard:

Standard Pandora family 40PIN plug and diagram

Having issues or not sure how to wire up your new Pandora arcade box to your cabinet or fight stick? The pandora family boards in most cases use the standard 40PIN connector. This has Player 1 and Player 2 on opposing sides of the plug and is pretty straight forward including ground, joystick and button wires.

Most wire are pretty straight forward, you can wire your buttons in whatever layout you like, just keep in mind each button has a trigger wire be it A,B,C,D,E, F including P1/P2 and Coin/Pause. All these buttons will share the same ground cable which runs as a single daisy chain from button to button and can get messy – so be sure to figure out the cleanest route before connecting the ground cable.

Cable colours can vary depending on manufacturer but the PIN locations are pretty standard across most Pandora Boxes. While pretty safe as there’s no power on the 40 PIN plug, if you’re doubting anything please cross reference this with where your existing cables go or with your seller/supplier.

Standard 40PIN Pandoras box wiring harness

Pandoras box 40 PIN plug diagram

What other consoles play retro games well?

There are many out there that can, but a much shorter list of those that do it well.

Our favourite portable handheld is the Anbernic RG351P and RG351M

The newest Super Console X3 Max+ is an Android TV box that uses the same emulator as the Anbernic and varied gamepad controller options from wired to wireless and stores out of the way.

If you want to use a Raspberry PI 3 or 4 or even a PC then an X-arcade stick will help provide that real arcade feel.

So back to Pandora’s….

Wi-Fi models and Games store

If the Pandora’s box you’re looking at has Wi-Fi it’s likely at minimum a H3 processor placing it in the mid-tier range. The S812 and GB3000 also come with Wi-Fi as an option – as mentioned these are faster spec boards.

The Wi-Fi models allow you to connect to your network and access the Games store located on the web.
While this gives you access to a claimed 15,000+ titles, as it’s free to access, here are the conditions;

• Amount of games you can download is restricted – up to 500 however this includes failed downloads and connections
• Connecting and download speed varies so can be hit-and miss
• Title names are often translated incorrectly, so finding the game or version you want can be a challenge
• You are restricted by how much free space you have on your memory card located in your Pandora’s box
• The plus is you can add games relatively easily

A box is a box, right? What’s in a Case…

Large case, small case, plastic case, all-metal case, wooden case, single case, split case, acrylic top?
Once you’ve found the motherboard you want, then you’ll need to decide on you’re playing style and case you’d like.

The most common cases I’ve come across are either all steel or a steel case with an acrylic top. The occasional base is made of wood or a thick plastic compound.

While the steel sheet base with acrylic top is very sturdy and allows for an LED strip option that lights up the panel, depending on the look you are after a solid steel case is also a great option. These two options are available in a single console where P1 and P2 are connected or on our preferred split consoles which provide P1 and P2 with their own console and preference on how they sit and play.

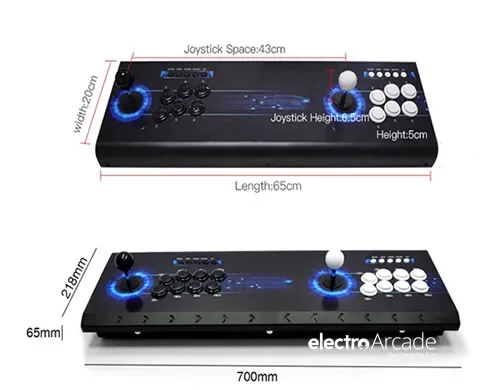

Steel case

Steel case split consoles with acrylic top

Joystick and button quality

The majority of Pandora’s boxes come with the standard buttons. While there is room for improvement, for most they do the job.

If you’re looking for improvement the first stop should be the joystick followed by buttons. Zippy is a definite improvement at a good price. Sanwa joystick and buttons are arcade quality made in Japan. Keeping with Chinese tradition, Sanwa copies are still a decent update at a more affordable price.

Having used original and copies of the Sanwa joysticks and buttons, the experience is good. The low profile means they should fit into most cabinets including the mobile consoles that pack away.

You can also look at Zippy or Happ, however not having used Happ, you would need to check on fitment suitability.

Depending on who or where you buy from along with quantity and shipping fees/duration costs on these items will vary.

Here is some kind of indication to get you started.

An original Sanwa JLF-TP-8YT sells for around USD $25 each.

Sanwa joystick copies with 1 set of buttons go for around USD $15.

Happ single joystick and buttons can be had for USD $26

Zippy joystick with 1 set of buttons are roughly USD $16

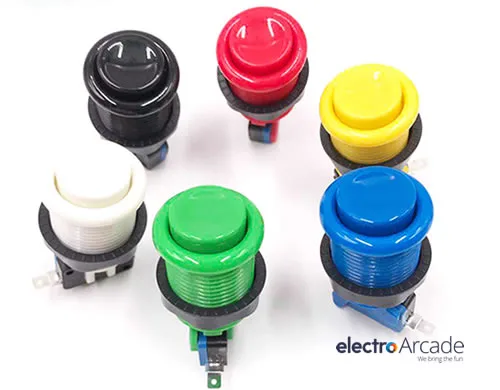

Just like the joysticks, make sure the buttons you are looking at have the right barrel width – a barrel that fits in the hole, not the top lip! Button depth is also critical as some of the screw-on ones are quite long and you need to allow for the leaf switch if they are external – why the Sanwa OBSF buttons or copies are a good idea as they are short, clip in and easy to install in most scenarios.

electroarcade

See Full Bio
